What is Mecmesin | Texture Analysis?



Mecmesin | Texture Analysis is the rebrand of our Food Technology Corporation (FTC) business under our parent Mecmesin brand.

Through our 15 plus year association with FTC, Mecmesin has built up extensive experience in practical food texture measurement.

This rebrand is part of our strategy to emphasise the strength of our capabilities and to grow our food texture analysis business.

Our expertise combined with our cost effective solutions for field, factory and laboratory test environments makes us the ideal partner for your texture measurement needs.

TMS multiple needle probe

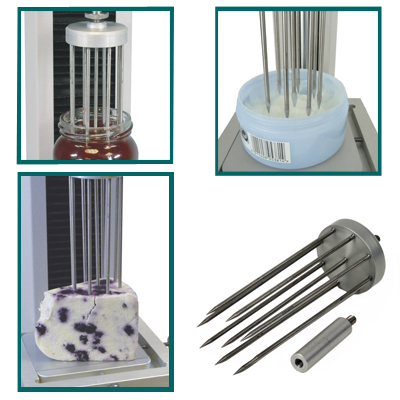

 TMS multiple needle probe	The TMS multiple needle probe consists of nine 120mm long stainless steel needles with a 15º taper at the tip. Each needle has an individual diameter of 2 mm and is removable to aid cleaning and provide food technologists with configuration flexibility.

The whole assembly has a diameter of 50 mm, which comfortably travels through the neck of standard 1lb (454 g) preserve or jam jars making it ideal for in container testing of jams, jellies, pickles and preserves. These products are very inhomogeneous in texture supporting varying sizes of fruit and vegetable pieces and, as such, cannot be measured easily through single point penetration.



Applications

TMS multiple needle probe

  • Gel strength testing of fruited jams, jellies and preserves
  • Set properties of English pickle
  • Rupture point of set marmalade
  • Firmness testing of fruited yogurts, cosmetic creams, etc.
  • Hardness and “scoopability” testing of ice-creams containing nuts, biscuits and confectionery inclusions
  • Bake quality of fruited cakes and puddings
  • Fracture and firmness of baked cookies and chocolate chip cookie dough
  • Biscuit hardness and friability through penetration
  • Curd strength of fruited speciality cheese
  • Toughness, resilience and rupture properties of processed meats and burgers



Contents and summary



Part Number Description
432-249 TMS MULTIPLE NEEDLE PROBE
Set of 9 stainless steel needle probes with 15 degree end taper for the measurement of jams, jellies and other inhomogeneous products.

Notes

This part replaces TMS Junior Multiple Probe Fixture (432-252)

Optionally, for sample presentation, use: TMS standard fixture table (432-243)



Images
Texture analysis fixture image
